Live Producer

Add a camera

Add a camera connected to this Mac to the show and put it in a shot.

Add a camera as a source and make a shot from it. The same steps add any other source from the Add Source menu. See Cameras, NDI and DeckLink.

Before you start

Section titled “Before you start”
  • Connect the camera to this Mac.
  • Open the show in the Studio.

Step 1: Add the camera

Section titled “Step 1: Add the camera”

Click Add Source at the bottom of the sources sidebar, or choose Switcher › Add Source. Under Cameras, choose the camera.

The bottom of the sources sidebar: the picture-size slider and Add Source, which opens the menu of source types

The first time, macOS asks for permission to use the camera. Allow it.

Step 2: Check the source

Section titled “Step 2: Check the source”

The camera appears in the Video group of the sidebar. Select it and look at the inspector:

Field What to look for
Status the camera is receiving
Frames Received the count goes up
Frame Rate no warning; a warning means the camera’s rate does not fit the show’s

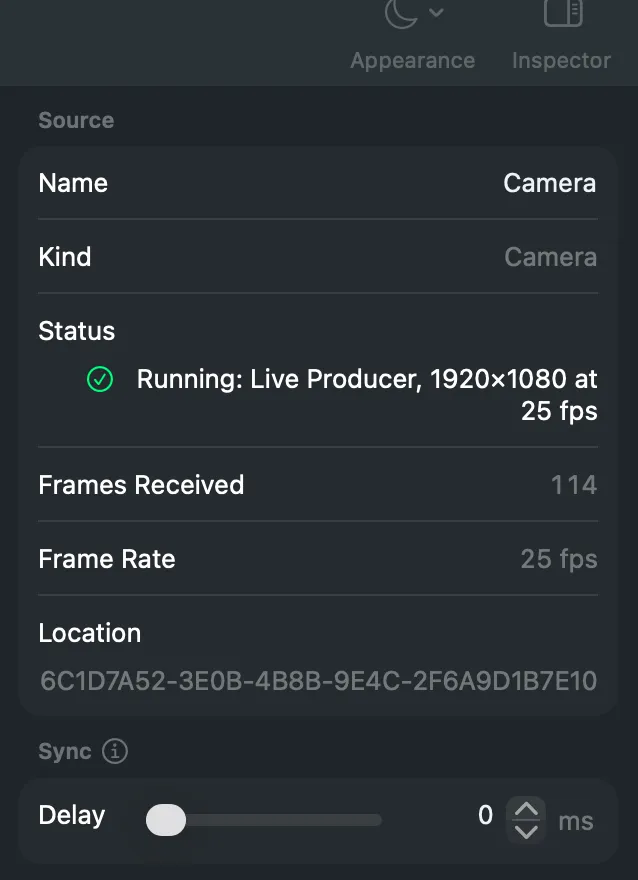

The inspector’s Source section for a camera: Name, Kind, Status running at 1920 × 1080 and 25 fps, Frames Received and Frame Rate

Give the source a name the crew knows in Name, for example “Host”.

Step 3: Make a shot

Section titled “Step 3: Make a shot”

Drag the camera’s tile onto a layer strip. The shot appears on that layer. Or right-click the tile and choose a layer under New Shot in Layer.

A layer strip with the new Camera shot beside Lower third, showing the camera’s picture

Verify

Section titled “Verify”

Click the new shot. The preview monitor shows the camera. Press Take to send it to the program. See Take and cut.
