The control API

The control API is the set of web addresses the Studio answers on its remote control port. The phone remote and the prompter use it, and so can Bitfocus Companion, a script, or any tool that sends HTTP requests. A GET reads; a POST acts.

Where it listens

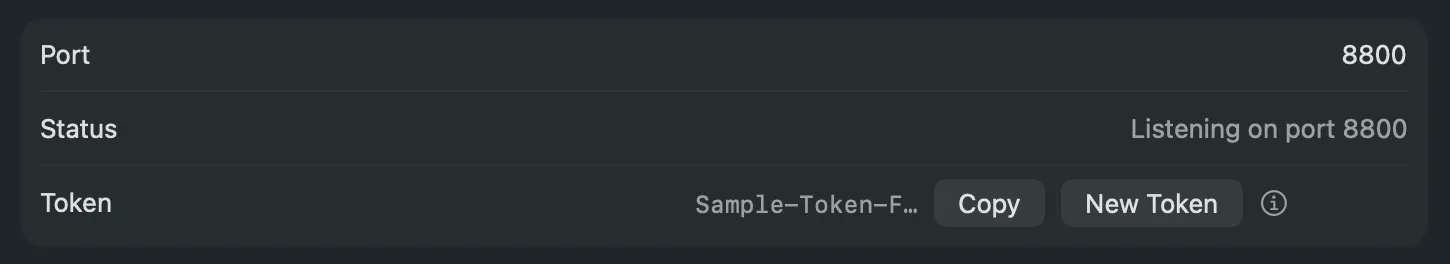

On port 8800 unless you change Port in Settings › This Mac › Remote. Status says whether it listens. From this Mac, use http://localhost:8800; from another machine, the Mac’s address and the token.

The token

Requests from this Mac need nothing. Requests from another device need the token, either as the X-Live-Producer-Token header or as ?t=<token> on the address. See The remote and its token.

Shots and layers by name

Method	Address	Does
POST	/shots/{name}/preview	Puts a shot in preview
POST	/shots/{name}/live	Takes a shot live at once
POST	/layers/{name}/clear	Takes a layer to nothing at once
POST	/layers/{name}/clear/preview	Puts Clear in preview on a layer
POST	/take	Makes the program match the preview

Use names for buttons: they keep working when layers are reordered, added or merged, and in other shows that use the same names. Capitalisation does not matter; write a space as %20. If two shots share a name, the one in the frontmost layer wins. An unknown name returns an error that lists the valid ones. With Auto Live on, every preview address goes live instead.

The show and its script

Method	Address	Does
GET	/state	The layers, shots, live and preview, sources, recording and more, as JSON
GET	/program.png, /preview.png	The current frames
GET	/multiview.png	The multiview, while its window is open
GET	/rundown	The script’s parts, the current and cued part, the clocks
POST	/rundown/next, /rundown/previous	Cues the next or previous part
POST	/rundown/go/{number}	Cues a part by its number (“5a”) or position
POST	/rundown/deck/forward, /rundown/deck/back	Corrects the deck by one click
POST	/show/start, /show/pause, /show/reset	Start Show and the show clock

Outputs

Method	Address	Does
POST	/record/start, /record/stop	The program recording
POST	/stream/start, /stream/stop, /stream/toggle	Every checked stream target
POST	/stream/{name}/start, /stop, /toggle	One target, by name
POST	/captions/on, /off, /toggle	Live captions
POST	/ftb, /ftb/down, /ftb/up	Fade to Black
POST	/transition/mode/auto, /transition/mode/cut	What Take does
POST	/transition/duration?s=0.8	The transition’s duration

The prompter

GET /prompter is the prompter page. POST /prompter/current jumps it to the part on air, /prompter/run/toggle starts or pauses auto-scroll, /prompter/speed?wpm=160 sets the pace, and /prompter/follow/on or /off sets Follow.
